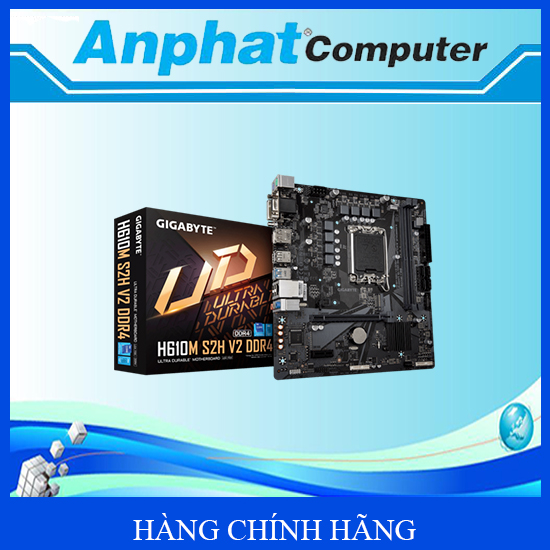

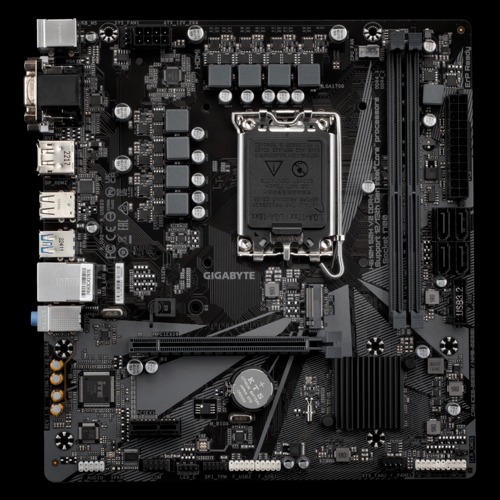

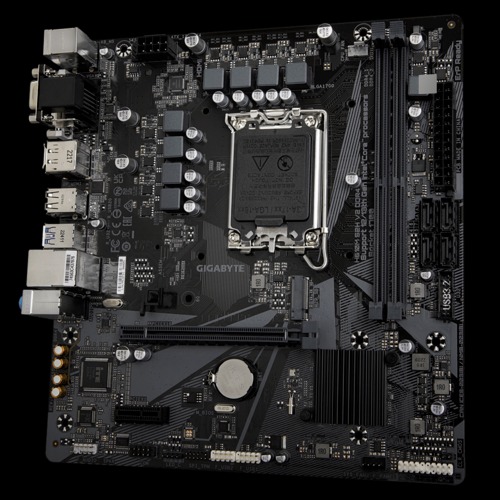

Mainboard Gigabyte H610M S2H V2 DDR4 (Bulk) Socket LGA1700 - Hàng Chính Hãng

Giới thiệu Mainboard Gigabyte H610M S2H V2 DDR4 (Bulk) Socket LGA1700 - Hàng Chính Hãng

• CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors*
  2. L3 cache varies with CPU
  * Please refer to "CPU Support List" for more information.
• Chipset
  1. Intel H610 Express Chipset
• Bộ nhớ
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. upport for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp Integrated Graphics Processor-Intel HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.
  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3
  (Graphics specifications may vary depending on CPU support.)
• Âm thanh
  1. Realtek Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  1. Realtek GbE LAN chip (1 Gbps/100 Mbps)
• Khe cắm mở rộng CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Giao diện lưu trữ Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
• USB Chipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x RGB LED strip header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper
• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x DisplayPort
  6. 1 x HDMI port
  7. 2 x USB 3.2 Gen 1 ports
  8. 4 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 3 x audio jacks
• Điều khiển I/O
  1. iTE I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
• Gói phần mềm
  1. Norton Internet Security (OEM version)
  2. LAN bandwidth management software
• Hệ điều hành
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Hệ số khuôn
  1. Micro ATX Form Factor; 23.0cm x 21.5cm
