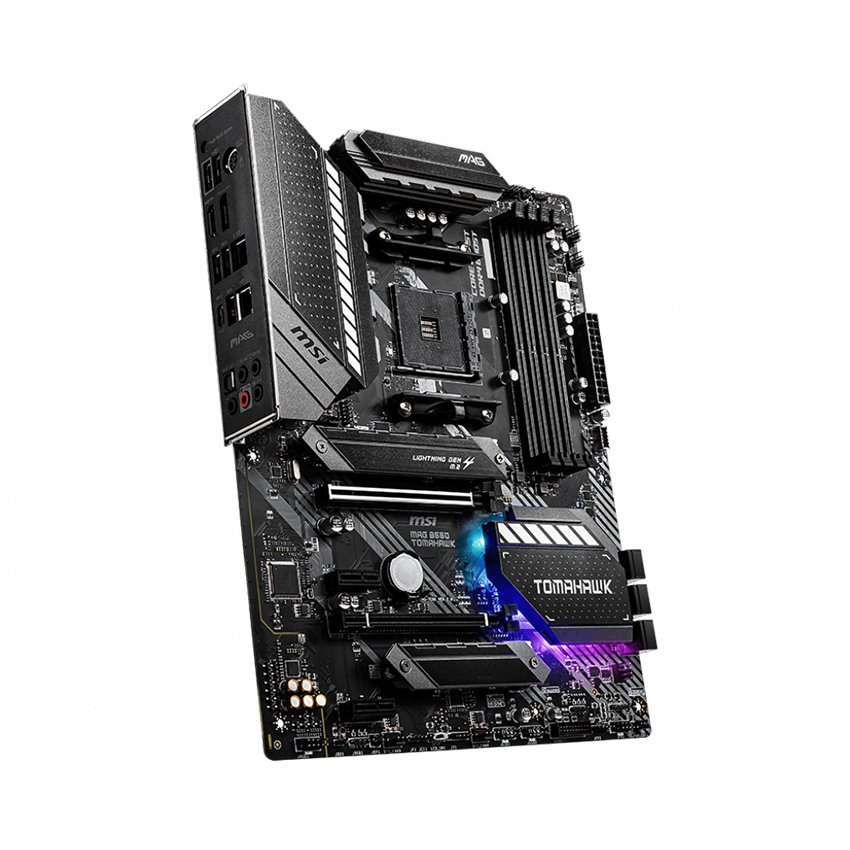

Bo Mạch Chủ MSI MAG B550 TOMAHAWK Hàng Chính Hãng

Giới thiệu Bo Mạch Chủ MSI MAG B550 TOMAHAWK Hàng Chính Hãng

Model : MAG B550 TOMAHAWK
CPU hỗ trợ : Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.
Chipset : AMD B550 Chipset
RAM hỗ trợ :
4 x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
Khe cắm mở rộng :
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
2x PCIe 3.0 x1 slots
Đa card màn hình
Supports 2-Way AMD CrossFire™ Technology
Cổng xuất hình onboard :
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
Maximum shared memory of 2048 MB
Available for the processor with integrated graphics.
Lưu trữ :
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
RAID :
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB :
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Âm Thanh
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN :
1x Realtek® RTL8125B 2.5Gbps LAN controller
1x Realtek® RTL8111H 1Gbps LAN controller
Cổng kết nối ( I/O bên trong) :
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x Clear CMOS jumper
Cổng kết nối ( I/O Phía sau) :
PS/2 Combo Port
DisplayPort
5G LAN Port
1G LAN Port
HD Audio Connectors
Flash BIOS Button
USB 2.0 Port
HDMI Port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
Optical S/PDIF OUT
Kích cỡ :
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
